ВВГнг(А)-FRLS, ВВГЭнг(А)-FRLS на 1 кВ ТУ 16.К71-337-2004
ВВГнг(А)-FRLS
-FRLS-Т ВВГЭнг(А)-FRLS-Т.jpg) |
-FRLS-Т ВВГЭнг(А)-FRLS-Т.jpg) |
||||||||||||||||||||||||||||
|
Power cables, fire-resistant, flame-retardant, low smoke- and gas emission. Cables meet requirements of St.Std. GOST 31996-2012. Cables of types ВВГнг(А)-FRLS, ВВГЭнг(А)-FRLS as per spec.TU 16.K71-337-2004 are manufactured under license of OAO «VNNIKP». |

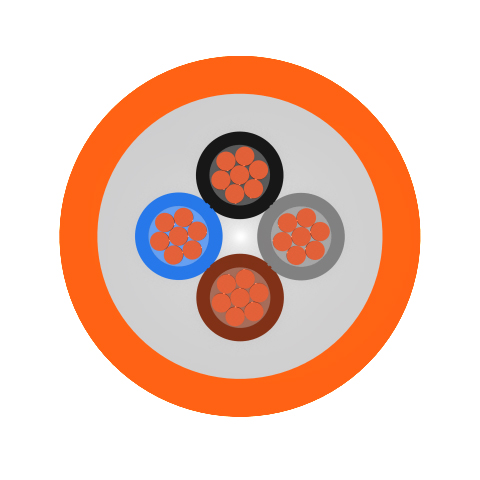

CONSTRUCTION 1. Current-carrying conductor – copper or aluminium, single-wire or multiwire, circular or sector shaped, 1 or 2 class as per St.Std GOST 22483. 2. Insulation – is made of polyvinylchloride compound of low fire hazard. Insulated conductors of multiconductor cables have distinction colors. Insulation of neutral conductors (N) is blue. Insulation of ground conductors (PE) has two colors (green-yellow). 3. Twisting – insulated conductors of two-, three-, four-, five conductor cables are twisted; two-, three-, five conductor cables have conductors that are identical in cross-section, four-conductor cables have conductors that are all identical in cross-section or have one conductor of less section (grounding or neutral conductor). 4. Inner sheath – is made of polyvinylchloride elastron of low inflammability. 5. Shield (for cables, types ВВГЭнг(А)-LS-Т, АВВГЭнг(А)-LS-Т) – is made of copper tapes. 6. Outer sheath – is made of polyvinylchloride elastron of low inflammability. Cables may be manufactured in flat version (in this case, letter «П» is added to designation): ВВГ-Пнг(А)-LS, АВВГ-Пнг(А)-LS. |
||||||||||||||||||||||||||||
|
USAGE GUIDELINES
|
APPLICATION Cables are intended for transmission and distribution of electric energy and electric signals in fixed electrical installations at ac voltage of up to 1 kV of a frequency of 50 Hz, Fire hazard class of cables as per St.Std GOST 31565-2012: П1б.1.2.1.2 |
||||||||||||||||||||||||||||
|
Design outer diameters and weights of cables |
|||||
|
Number of conductors and |
Design cable outer diameter |
Design weight of 1 km cable |
|||
|
Rated Cross Section |
Overall Diameter of Cable (Approx) |
Current Carrying Capacity |
|||
|
mm2 |
mm |
kg |
|||
| ВВГнг(А)-FRLS-Т | ||
| 1х1.5ок | 7.2 | 78,7 |
| 1х2.5ок | 7.6 | 93,0 |
| 1х4ок | 8.5 | 122 |
| 1х6ок | 9.2 | 152 |
| 1х10ок | 10.0 | 201 |
| 1х16мк | 11.6 | 283 |
| 1х25мк | 12.8 | 388 |
| 1х35мк | 13.8 | 490 |
| 1х50мк | 15.3 | 632 |
| 1х70мк | 16.8 | 848 |
| 1х95мк | 19.5 | 1154 |
| 1х120мк | 21.0 | 1398 |
| 1х150мк | 23.2 | 1724 |
| 1х185мк | 25.6 | 2150 |
| 1х240мк | 28.5 | 2737 |
| 1х300мк | 31.2 | 3342 |
| 1х400мк | 34.5 | 4221 |
| 1х500мк | 38.0 | 5363 |
| 1х630мк | 41.8 | 6716 |
| 2х1.5ок(N) | 14.1 | 300 |
| 3х1.5ок | 14.8 | 331 |
| 4х1.5ок(РЕ) | 15.9 | 384 |
| 5х1.5ок(N,PE) | 17.2 | 445 |
| 2х2.5ок(N) | 14.9 | 345 |
| 3х2.5ок | 15.6 | 385 |
| 4х2.5ок(РЕ) | 16.8 | 453 |
| 5х2.5ок(N,PE) | 18.2 | 525 |
| 2х4ок(N) | 16.6 | 447 |
| 3х4ок | 17.5 | 506 |
| 4х4ок(РЕ) | 18.9 | 598 |
| 5х4ок(N,PE) | 20.6 | 701 |
| 2х6ок(N) | 17.6 | 519 |
| 3х6ок | 18.5 | 596 |
| 4х6ок(РЕ) | 20.1 | 714 |
| 5х6ок(N,PE) | 21.9 | 842 |
| 2х10ок(N) | 19.2 | 663 |
| 3х10ок | 20.3 | 777 |
| 4х10ок(РЕ) | 22.1 | 939 |
| 5х10ок(N,PE) | 24.3 | 1133 |
| 2х16мк(N) | 22.5 | 928 |
| 3х16мк(N,PE) | 24.0 | 1110 |
| 4х16мк(РЕ) | 26.2 | 1356 |
| 5х16мк(N,PE) | 28.7 | 1620 |
| 2х25мк(N) | 24.9 | 1232 |
| 3х25мк(N,PE) | 26.4 | 1489 |
| 4х25мк(РЕ) | 28.9 | 1836 |
| 5х25мк(N,PE) | 31.8 | 2206 |
| 2х35мк(N) | 26.9 | 1516 |
| 3х35мк(N,PE) | 28.5 | 1856 |
| 4х35мк(РЕ) | 31.3 | 2300 |
| 5х35мк(N,PE) | 34.9 | 2816 |
| 2х50мк(N) | 29.9 | 1931 |
| 3х50мк(N,PE) | 31.8 | 2382 |
| 4х50мк(РЕ) | 35.4 | 3010 |
| 5х50мк(N,PE) | 38.9 | 3637 |
| 2х70мк(N) | 32.9 | 2510 |
| 2х95мк(N) | 37.9 | 3371 |
| 2х120мк(N) | 40.9 | 4041 |
| 2х150мк(N) | 45.7 | 5035 |
| 2х185мк(N) | 49.7 | 6126 |
| 2х240мк(N) | 55.9 | 7832 |
| 3х50мс | 32.3 | 2261 |
| 4х50мс(РЕ) | 33.5 | 2807 |
| 5х50мс(N,PE) | 36.9 | 3483 |
| 3х70мс, | 35.7 | 2963 |
| 4х70мс(РЕ) | 37.1 | 3717 |
| 5х70мс(N,PE) | 40.5 | 4584 |
| 3х95мс | 39.6 | 3868 |
| 4х95мс(РЕ) | 41.1 | 4888 |
| 5х95мс(NPE) | 45.3 | 6062 |
| 3х120мс, | 42.2 | 4645 |
| 4х120мс(РЕ) | 44.1 | 5922 |
| 5х120мс(N,PE) | 48.6 | 7364 |
| 3х120мс | 43.1 | 5356 |
| 3х150мс | 46.0 | 5668 |
| 4х150мс(РЕ) | 48.0 | 7239 |
| 5х150мс(N,PE) | 52.4 | 9066 |
| ВВГЭнг(А)-FRLS-Т | ||
| 1х1.5ок | 9.6 | 149 |
| 2х1.5ок(N) | 14.7 | 343 |
| 3х1.5ок(N,PE) | 15.3 | 376 |
| 4х1.5ок(PE) | 16.5 | 433 |
| 5х1.5ок(N,PE) | 17.8 | 498 |
| 1х2.5ок | 10.0 | 167 |
| 2х2.5ок(N) | 15.4 | 391 |
| 3х2.5ок(N,PE) | 16.2 | 434 |
| 4х2.5ок(PE) | 17.4 | 506 |
| 5х2.5ок(N,PE) | 18.8 | 583 |
| 1х4ок | 10.9 | 204 |
| 2х4ок(N) | 17.2 | 496 |
| 3х4ок(N,PE) | 18.0 | 558 |
| 4х4ок(PE) | 19.5 | 656 |
| 5х4ок(N,PE) | 21.2 | 764 |
| 1х6ок | 11.4 | 233 |
| 2х6ок(N) | 18.2 | 575 |
| 3х6ок(N,PE) | 19.1 | 655 |
| 4х6ок(PE) | 20.7 | 779 |
| 5х6ок(N,PE) | 22.5 | 913 |
| 1х10ок | 12.2 | 289 |
| 2х10ок(N) | 19.8 | 724 |
| 3х10ок(N,PE) | 20.9 | 842 |
| 4х10ок(PE) | 22.7 | 1011 |
| 5х10ок(N,PE) | 24.9 | 1212 |
| 1х16мк | 13.8 | 385 |
| 2х16мк(N) | 23.0 | 1001 |
| 3х16мк(N,PE) | 24.5 | 1188 |
| 4х16мк(PE) | 26.8 | 1442 |
| 5х16мк(N,PE) | 29.3 | 1714 |
| 1х25мк | 14.9 | 499 |
| 2х25мк(N) | 25.5 | 1313 |
| 3х25мк(N,PE) | 27.0 | 1575 |
| 4х25мк(PE) | 29.5 | 1931 |
| 5х25мк(N,PE) | 32.3 | 2311 |
| 1х35мк | 15.9 | 610 |
| 2х35мк(N) | 27.5 | 1604 |
| 3х35мк(N,PE) | 29.1 | 1949 |
| 4х35мк(PE) | 31.9 | 2403 |
| 5х35мк(N,PE) | 35.4 | 2930 |
| 1х50мк | 17.4 | 765 |
| 2х50мк(N) | 30.5 | 2030 |
| 3х50мс | 32.3 | 2486 |
| 4х50мс(PE) | 35.9 | 3126 |
| 5х50мс(N,PE) | 39.5 | 3766 |
| 1х70мк | 19.3 | 1015 |
| 2х70мк(N) | 33.6 | 2620 |
| 1х95мк | 21.6 | 1322 |
| 2х95мк(N) | 38.5 | 3497 |
| 1х120мк | 23.1 | 1579 |
| 2х120мк(N) | 41.5 | 4177 |
| 1х150мк | 25.7 | 1952 |
| 2х150мк(N) | 46.3 | 5187 |
| 1х185мк | 27.7 | 2368 |
| 2х185мк(N) | 50.3 | 6292 |
| 1х240мк | 30.7 | 2981 |
| 2х240мк(N) | 56.5 | 8019 |
| 3х50мк(N,PE) | 32.4 | 2331 |
| 4х50мс(PE) | 33.7 | 2882 |
| 5х50мс(N,PE) | 37.1 | 3558 |
| 3х70мс | 35.9 | 3046 |
| 4х70мс(PE) | 37.3 | 3790 |
| 5х70мс(N,PE) | 40.7 | 4667 |
| 3х95мс | 39.8 | 3949 |
| 4х95мс(PE) | 41.3 | 4973 |
| 5х95мс(N,PE) | 45.5 | 6155 |
| 3х120мс | 42.3 | 4732 |
| 4х120мс(PE) | 44.7 | 6062 |
| 5х120мс(N,PE) | 48.7 | 7465 |
| 3х150мс | 46.2 | 5763 |
| 4х150мс(PE) | 48.1 | 7338 |
| 5х150мс(N,PE) | 52.6 | 9175 |
| 3х185мс | 50.3 | 6972 |
| 4х185мс(PE) | 52.2 | 8908 |
| 5х185мс(N,PE) | 57.6 | 11142 |
| 3х240мс | 55.9 | 8871 |
| 4х240мс(PE) | 58.2 | 11419 |
| 5х240мс(N,PE) | 63.8 | 13937 |
